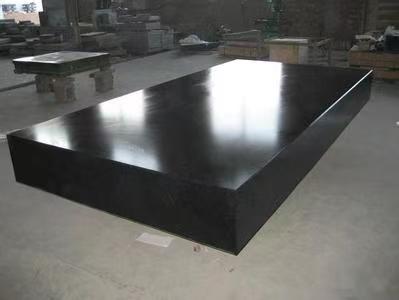

The granite platform is chamfered.

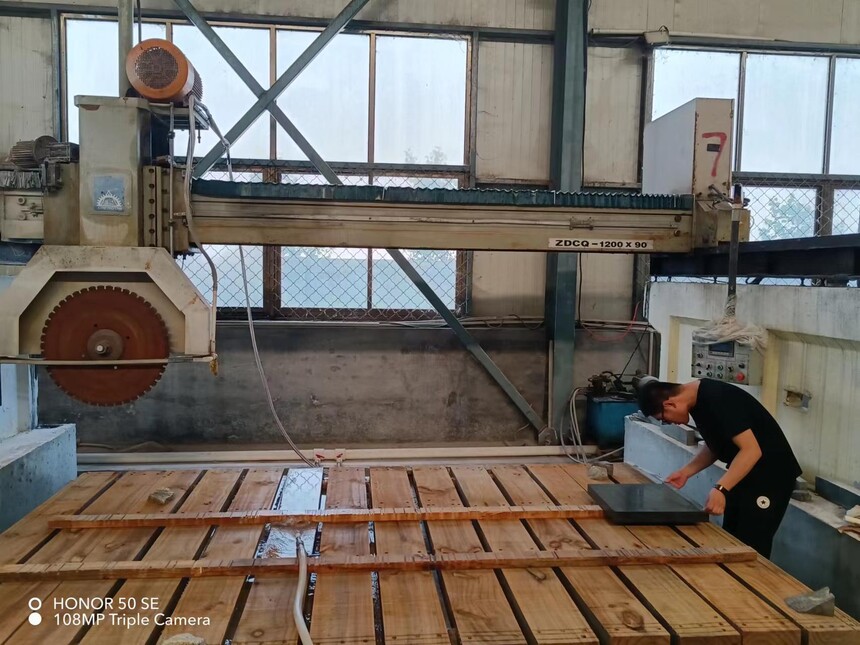

Chamfering is a common edge treatment process in stone processing, which can significantly improve the properties and service life of stone by cutting sharp edges into oblique or round surfaces. The following analysis is carried out from the perspective of materials mechanics, stress distribution and practical application:1. The basic principle of stress concentration Stress concentration refers to the phenomenon that the local stress at the position of sudden change in the geometric shape of an object (such as angles, holes, notches) is significantly higher than the average stress. According to the formula of elastic mechanics, the stress concentration factor (Kt) is closely related to the shape: K_t = 1   2\sqrt{\frac{a}{\rho}} where a is the length of the defect, \rho is the of curvature. The radius of curvature of the sharp angle is extremely small (approaching 0), which leads to a sharp increase in the stress concentration factor. For example, local stress of a sharp 90° right-angle edge may be 3-5 times the average stress. As a brittle material (with low tensile strength poor toughness), stone is very prone to micro cracks in the stress concentration area, and cracks expand under the action of external loads (pressure, impact, temperature changes) or residual stresses, eventually leading to fracture.

2. The mechanical optimization mechanism of chamfering

Chamfering improves the stress distribution in the following ways: () Increase the radius of curvature and reduce the stress concentration factor By machining the sharp angle into a slope or round arc (such as 45° chamfer or angle), the radius of curvature \rho of the edge is significantly increased, thus reducing the stress concentration factor. For example, the round arc chamfer can reduce K_ from 3-5 of the sharp angle to below 1.5, effectively dispersing the local stress. (2) Improve the load transfer path After chamering, the transfer path of external load (such as pressure, impact force) changes from "point contact" to "face contact", avoiding stress concentration at sharp points. For, when the stone slab for ground paving is stepped on by pedestrians, the chamfered edge can disperse the vertical pressure and horizontal shear force more evenly. 3) Reduce the generation of micro cracks The sharp edge is prone to bumps during processing, transportation, or installation, forming small defects. Chamfering can eliminate these initial and reduce the probability of crack source generation. 3. Comprehensive benefits in practical applications (1) Enhanced impact resistance When the chamfered edge is subjected external force impact (such as handling, furniture collision), it can absorb energy through plastic deformation (slight fragmentation), while the sharp edge is prone to edge chipping through cracks. Experimental results show that chamfering treatment can improve the impact strength of stone edges by 30%-50%. (2) Increased adapt to environmental factors Stone will expand/contract under temperature and humidity changes, and stress concentration at sharp corners makes it easier to produce thermal stress cracks. Chamfering treatment can such environmental fatigue damage by uniformizing stress distribution. (3) Prolonged fatigue life Under cyclic load (such as frequent stepping by people), the stress amplitude of chamfered edge is lower, and the crack expansion rate slows down, significantly prolonging the fatigue life of the stone. For example, after chamfering treatment, edge damage rate of stair tread stone can be reduced by more than 60%. 4. Key points of chamfer technology · Chamfer angle and shape:45° oblique surface or round arc chamfer (R angle) is commonly used, and it needs to be optimized according to the thickness and use of the stone.· Machining accuracy: Rough chamfering may introduce new defects, and the machined surface needs to be smooth and uniform. · Material matching: Hard stone (such granite) needs to use diamond tools to avoid excessive machining.
